Double Skin Partitioning

Specialist double skin steel partitioning contractors in the West Midlands, delivering durable and acoustically efficient partition systems for industrial and commercial spaces. Bespoke design, supply, and professional installation.

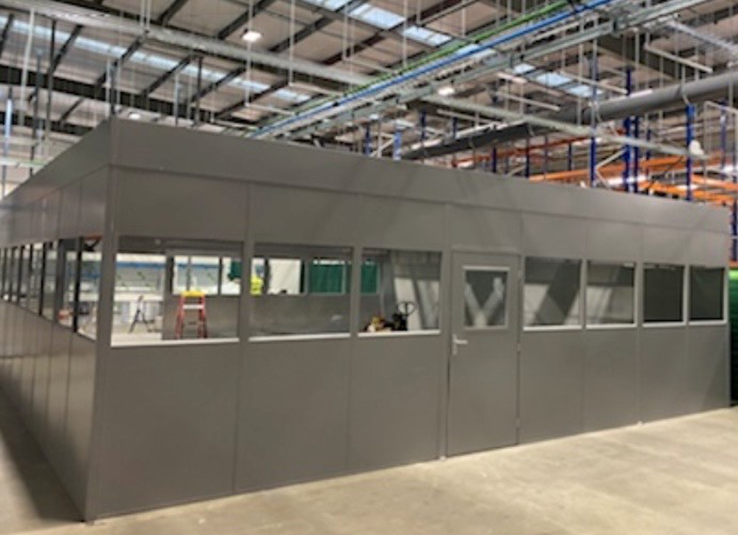

Double Skin Steel Partitioning Example 1
Double Skin Steel Partitioning Example 2

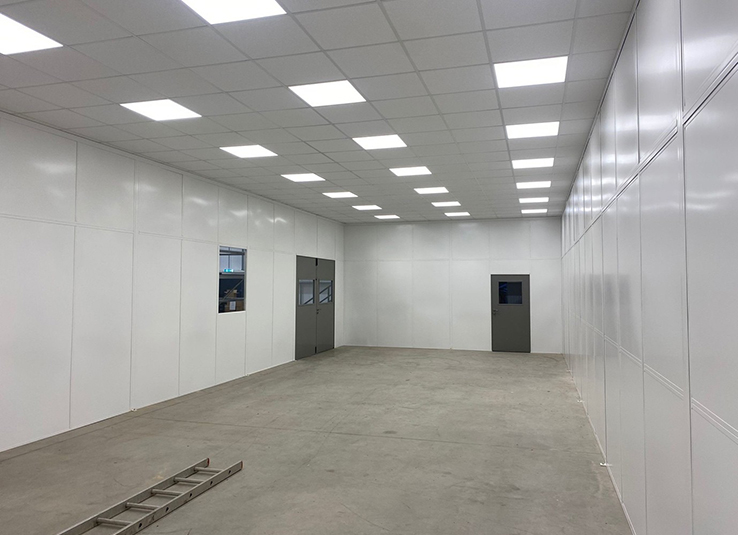

Double Skin Steel Partitioning Example 3

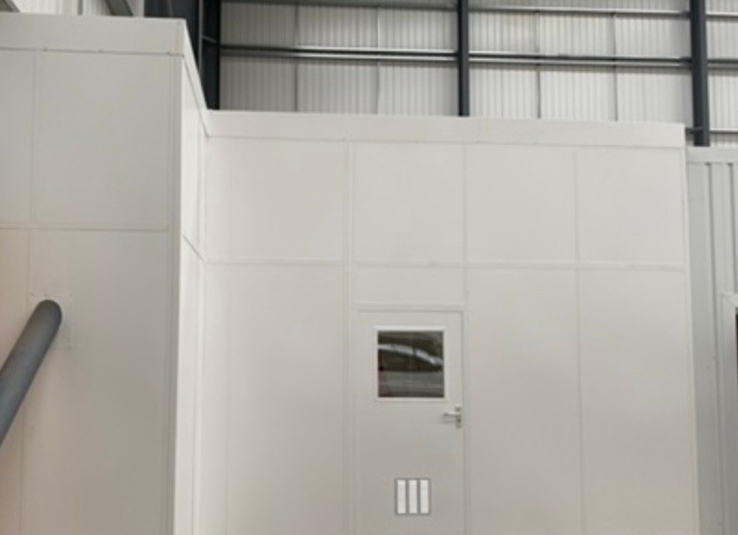

Double Skin Steel Partitioning Example 4

SPECIFICATION

Panels are constructed from 25.4 x 42 x 25.4 x 1.2 mm (18g) cold rolled channels panelled both sides with 0.8 mm (21g) CR4 mild steel sheet with 30 mm Rockwool mineral fibre infill and are joined together using an ‘H’ section. Panels are available in solid, half-glazed, solid/glazed/solid or borrowed light elevation.

Choice of powder coated finishes.

Demountable and relocatable.

Ceiling solutions available to complement our partitioning.

STANDARD PANEL SIZES

Height2,400, 2,700, 3,000 mm
Width1,000 mm
Dado Height1,200 mm
Thickness47 mm

A range of infill and special sized panels can be supplied to achieve final dimensions.

Side hung and sliding door options available.

MULLION SIZES

50 x 50 x 2.5 mmup to 2,700 mm high
80 x 40 x 2.5 mm2,700 mm and above
100 x 50 x 3.0 mmto suit installation

All Two-Way (intermediate) mullions have base plates for floor fixing. Knee braces and/or ladder mullions may be fitted for extra stability and strength.

Typical double skin floorplan layout

Typical double skin floorplan layout
