Storage

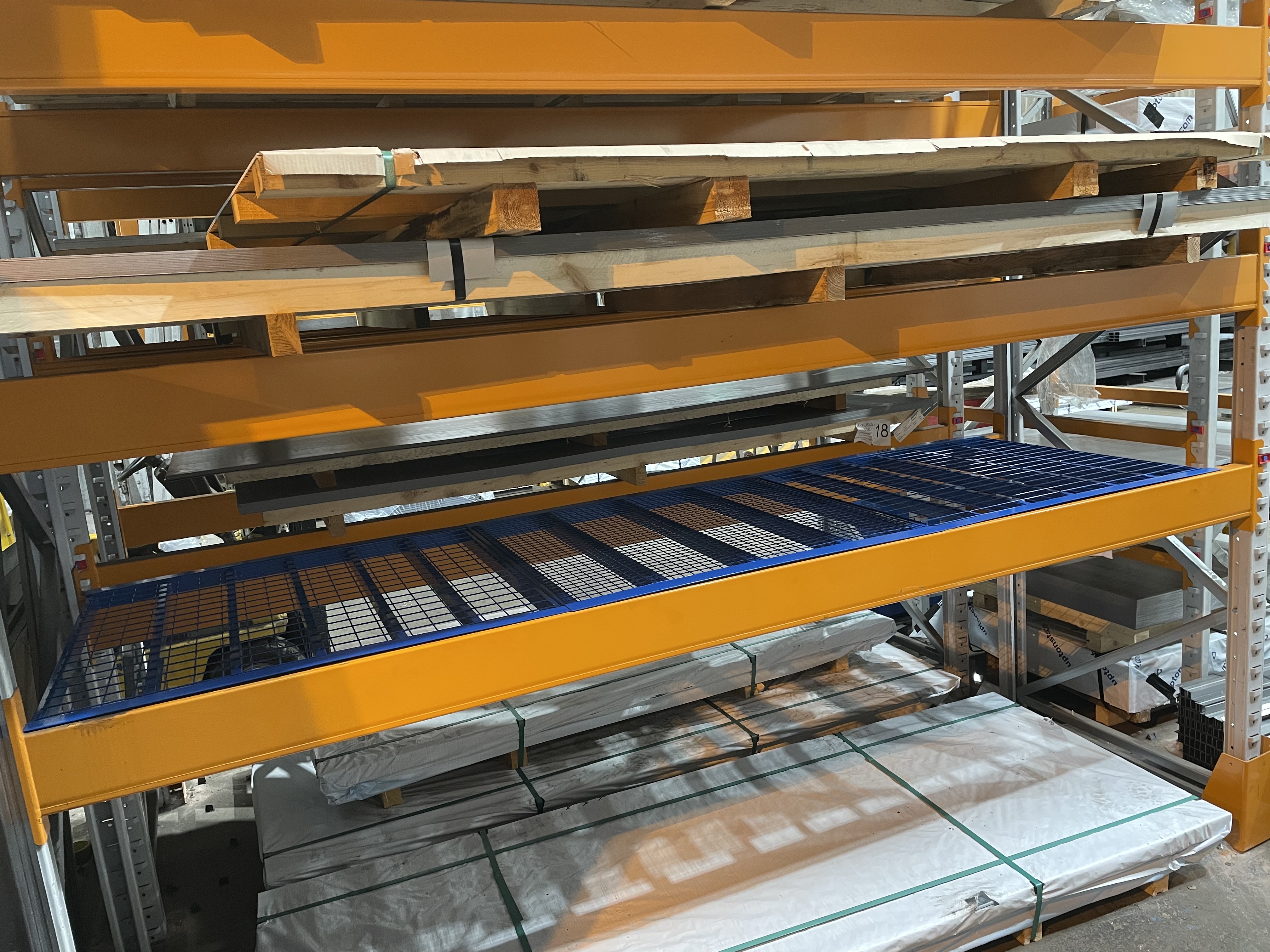

Heavy duty shelves that have been tested to take loads of up to 1000 kgs U.D.L. They are designed and manufactured to suit individual customers pallet racking sizes and are particularly suited to the top two levels of high racking.

The shelves allow for the storage of palletised goods or individual items, whilst still allowing the passage of light and ventilation, they also allow sprinkler systems to operate efficiently.

Fire Authorities recommend wire mesh shelves where a sprinkler system is installed.

They are constructed from 50 x 50 x 6mm angle with 40 x 40 welded SHS and 1” x 1” x 12 gauge mesh sheets. The shelves can be easily installed and re-located and are supplied powder coated to a standard colour.

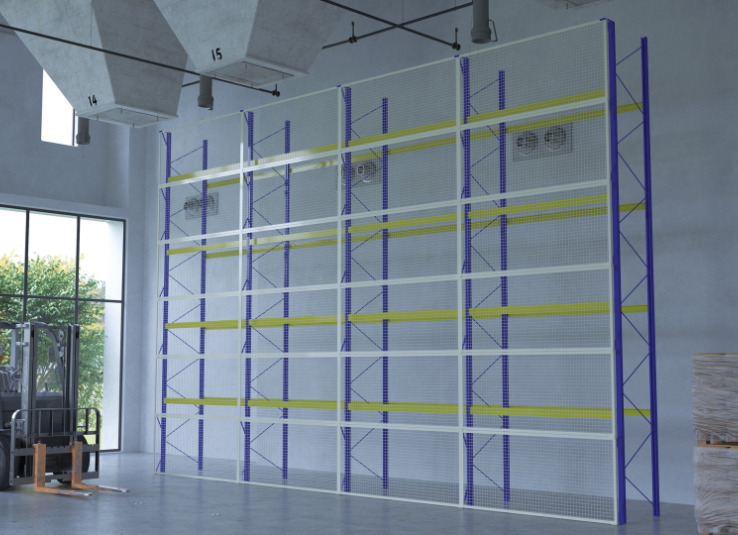

Designed as a mesh screen to clad pallet racking, and increase safety while handling pallets and palletised items.

Panels are constructed from cold-rolled angle and cold-rolled T-bar into which mesh sheets are spot-welded to give added strength and resistance to impact.

Manufactured to suit the racking bay centres, thus eliminating the need to cut and fabricate panels on site and are bolted together for added strength and rigidity.

Triangular stand-off brackets, which act as spacers between the racking and the mesh panels, can be made to suit customers’ requirements.

The intermediate brackets are reversible so that they do not interfere with the racking beams. Every installation is manufactured to fit each individual site, thus ensuring easy and fast installation time.

product specification

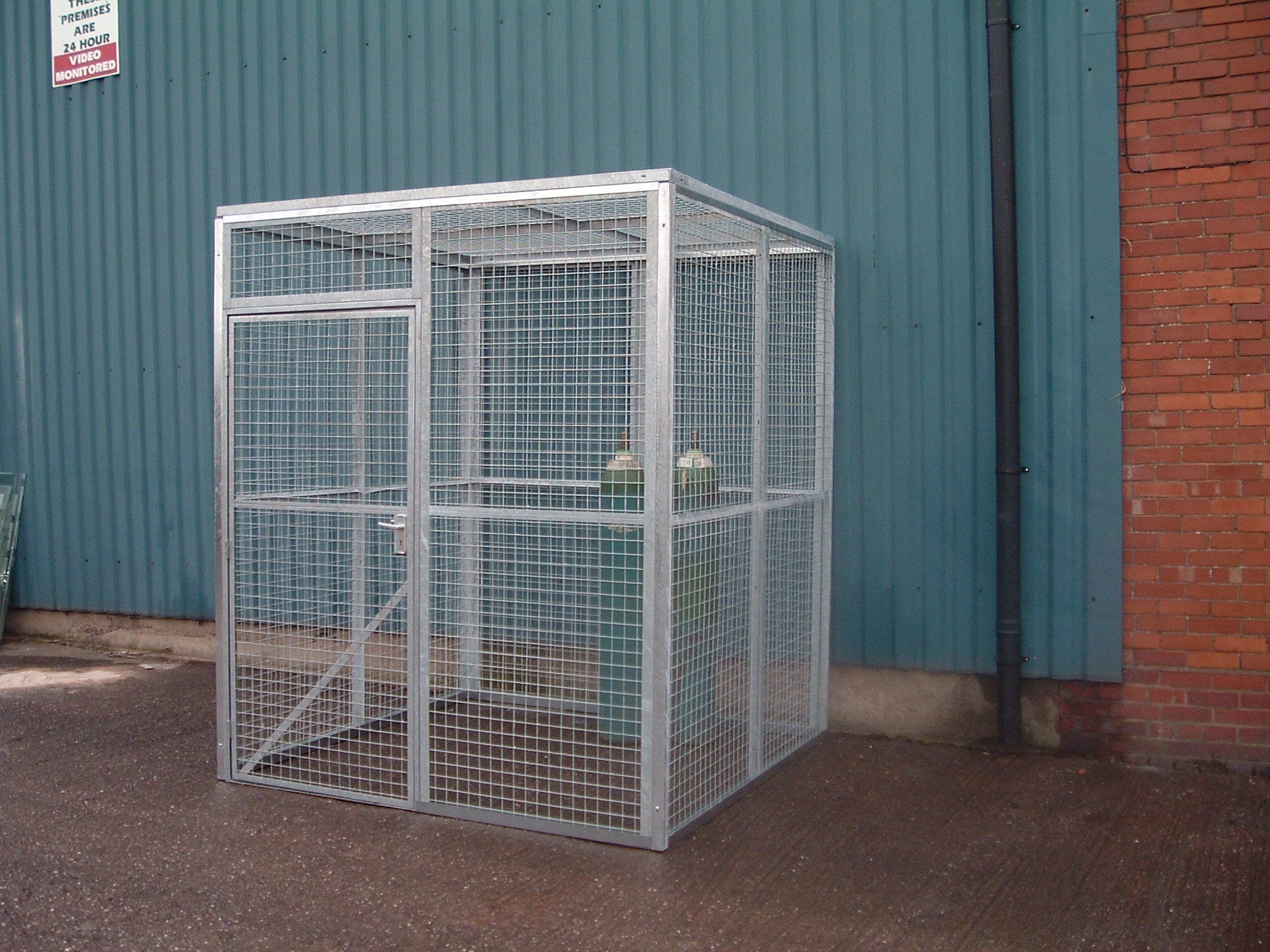

Our multi purpose mesh storage cages are easy to erect.

They are designed to protect and secure valuable items such as alcohol or gas bottles. Available in standard grey powder coated finish or galvanised for outside use.

product specification

standard sizes
