Partition wall kit

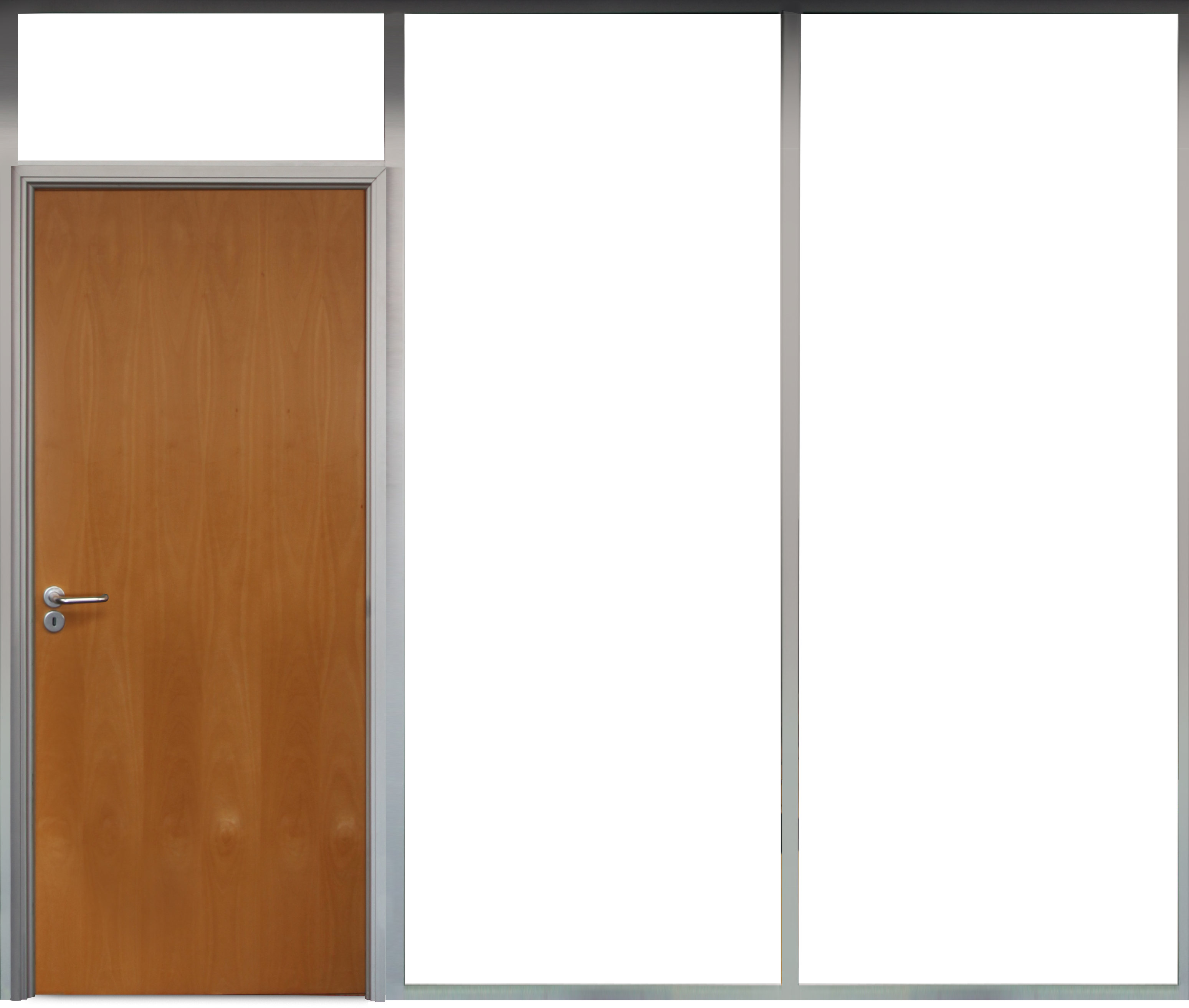

A standard partition wall kit can be constructed into a 3000mm wide x 2400mm tall wall.
The wall panels are supplied pre-finished to match the building interior.
The door frame is fully assembled with a pre-hung light oak hollow core door and fitted with a 3 lever lock. Door handle is supplied loose which is fitted during installation.
Also included are all the necessary aluminium extrusions to install the wall.
All aluminium profiles are white powder coat paint finish.
Other colours (RAL standard) are available upon request.

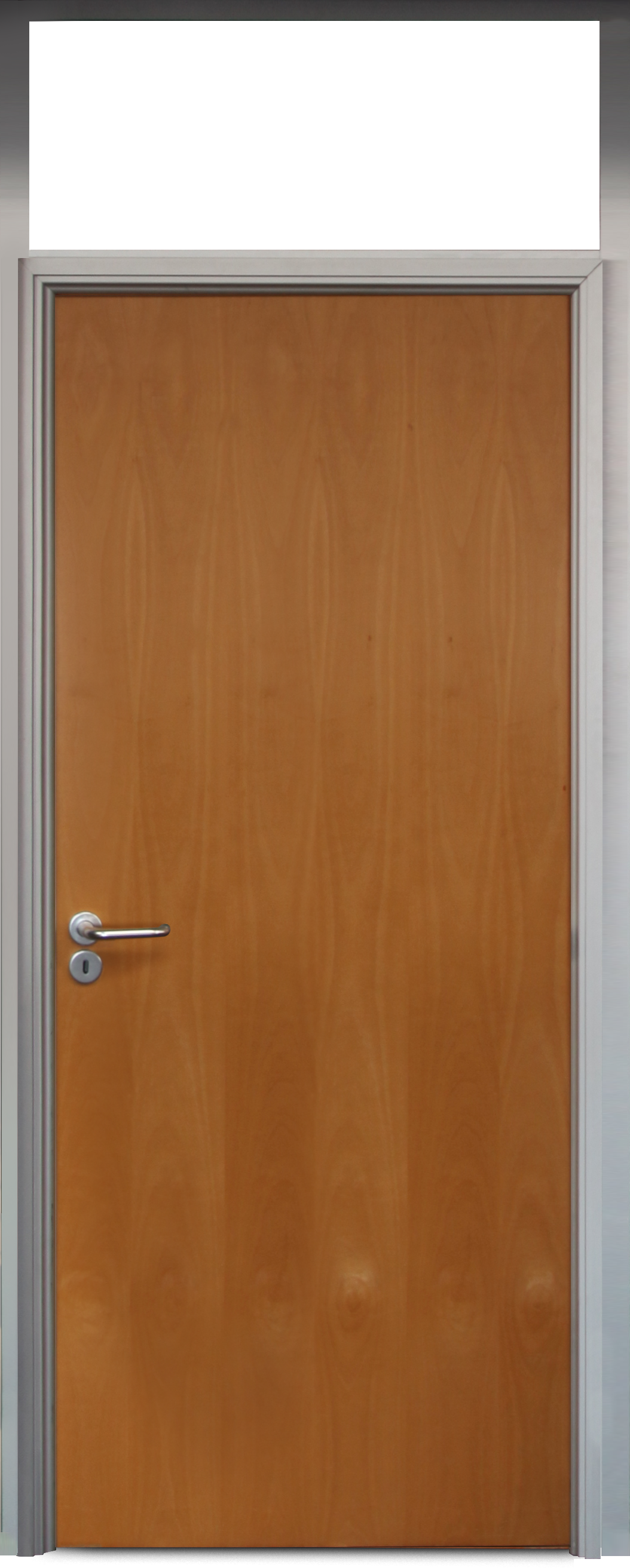

1 x door kit, 834mm overall frame width for a 762mm wide door.
Door finish: light oak, other finishes available upon request.
Door size: 762mm, 838mm and 914mm wide x 1981mm high x 35mm thick.

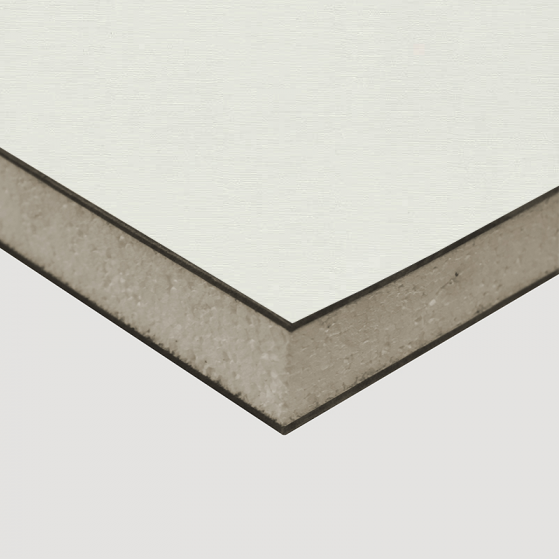

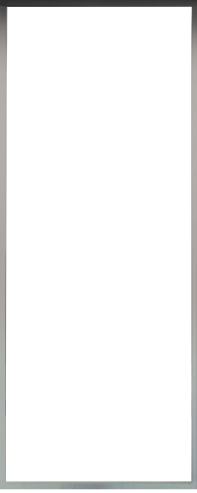

2 x Wall panels each
1220 x 2440mm x 44mm
1 x Ceiling channel.
3000mm long.
2 x Floor angle.
2500mm long.
2 x Wall channels.
2400mm long.
2 x Wall panels each
1220 x 2440mm x 44mm
1 x Jointing channel.
2400mm long.
