Single Skin Partitioning

Single skin partitioning in the West Midlands provides a lightweight, durable steel solution for efficiently dividing warehouses, factories, and workshops, improving workflow, maximising space utilisation, and offering a cost-effective, flexible layout option.

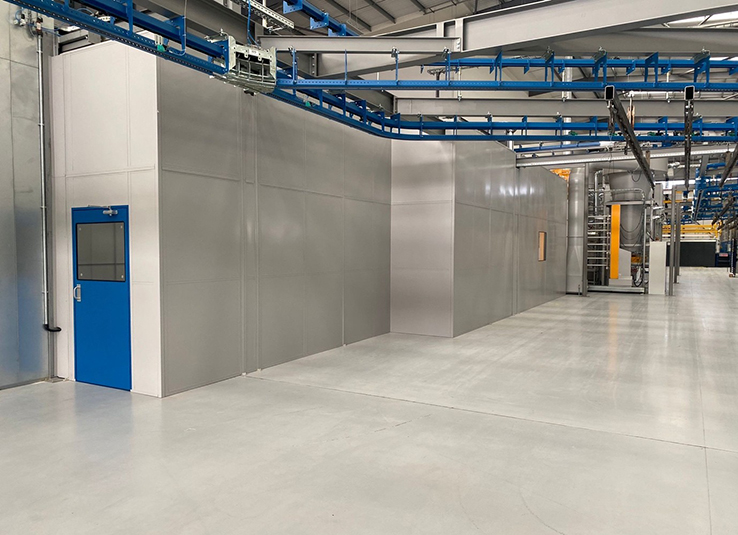

Single Skin Steel Partitioning Example 1

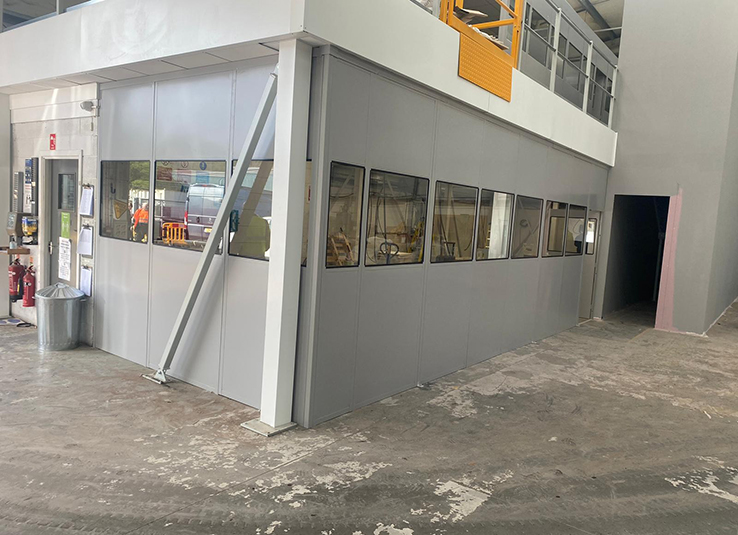

Single Skin Steel Partitioning Example 2

SPECIFICATION

Panels are constructed from 43 x 43 x 1.2 mm (18g) cold-rolled angles and 32 x 32 x 0.7 mm (22g) cold-rolled T bars. Panels are available in solid, mesh or solid/glazed/solid elevations.

Choice of powder coated finishes.

Demountable and relocatable.

Ceiling solutions available to complement our partitioning.

STANDARD PANEL SIZES

Height2,400, 2,700, 3,000 mm
Width1,000 mm
Dado Height1,200 mm
Thickness43 mm

A range of infill and special sized panels can be supplied to achieve final dimensions.

Side hung and sliding door options available.

MULLION SIZES

50 x 50 x 2.5 mmup to 2,700 mm high
80 x 40 x 2.5 mm2,700 mm and above
100 x 50 x 3.0 mmto suit installation

All Two-Way (intermediate) mullions have base plates for floor fixing. Knee braces and/or ladder mullions may be fitted for extra stability and strength

Typical single skin floorplan layout

Typical single skin floorplan layout
