Industrial Limited
Steel Safety Products

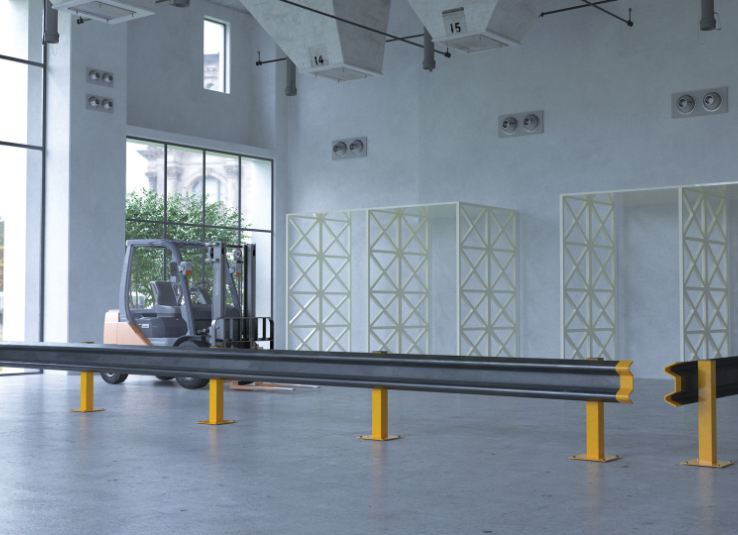

Crash Barriers
Our crash barriers consist of steel rails bolted to support posts, mounted on base plates, and are designed to protect machinery, racking, shelving and partitioning from damage.
product specification
| Heavy Duty Steel Rail (galvanised) | 312 mm deep 3.2 m lengths Twin rail version available |
|---|---|
| Support Post | 100 x 100 x 3.5 mm Height 750 mm Special heights can be supplied |
| Base Plate | 200 x 200 x 10 mm |
| Finish | To customers' requirements |

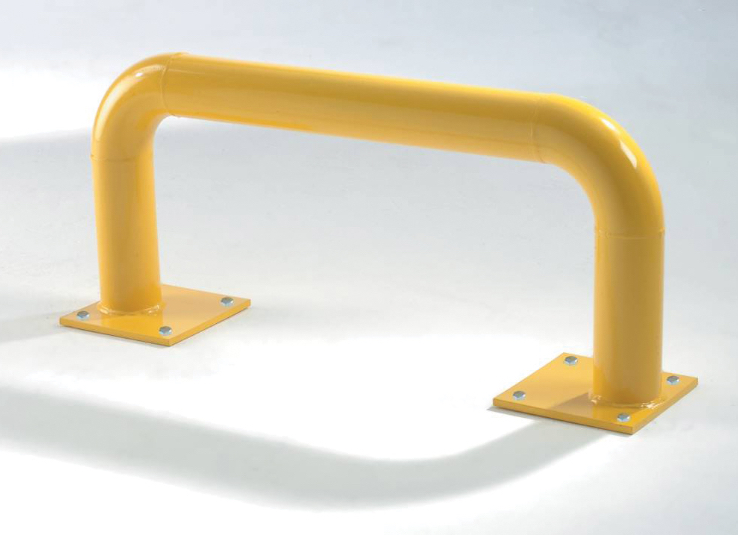

Tubular Barriers
Tubular barriers are low level and heavy duty with rounded corners for protection of people and equipment.
product specification
| Height | 500mm or 750mm |
|---|---|
| Individual barrier length | up to 2,500mm |
| Maximum length with centre post | 4,000mm |
| Finish | To customers’ requirements |

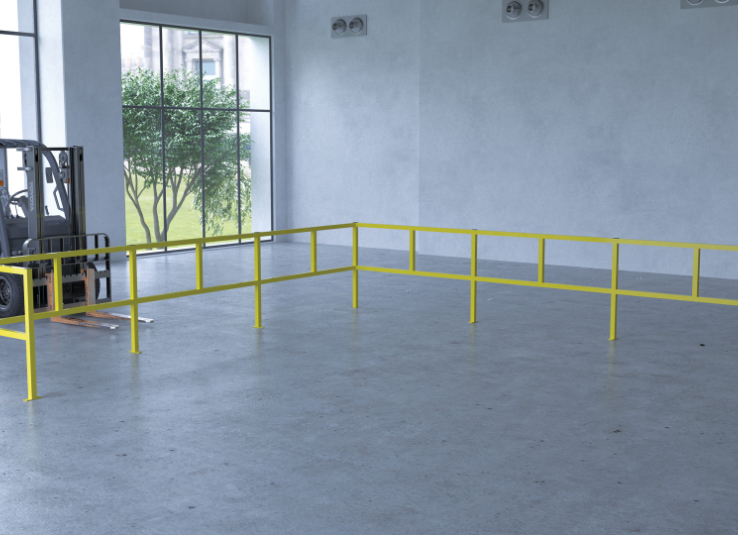

Pedestrian safety barriers
A light duty system providing a simple and economical way to create safe pedestrian areas at ground or raised floor level, in factory or warehouse.
The recommended maximum height of rails is 1,100 mm, the recommended maximum length of rail between each post is 2,000 mm.
Height and length of rail are manufactured to suit customers’ requirements.
Single or double rails are bolted to posts, allowing individual components to be replaced easily.
product specification
| Rail | Hollow section 50 x 50 x 2.5 mm |
|---|---|
| Posts | Hollow section 50 x 50 x 2.5 mm Post tops fitted with black plastic inserts |
| Base Plates | 150 x 50 x 10 mm |
| Finish | Powder-coated Yellow RAL 1018 or to customers’ requirements |

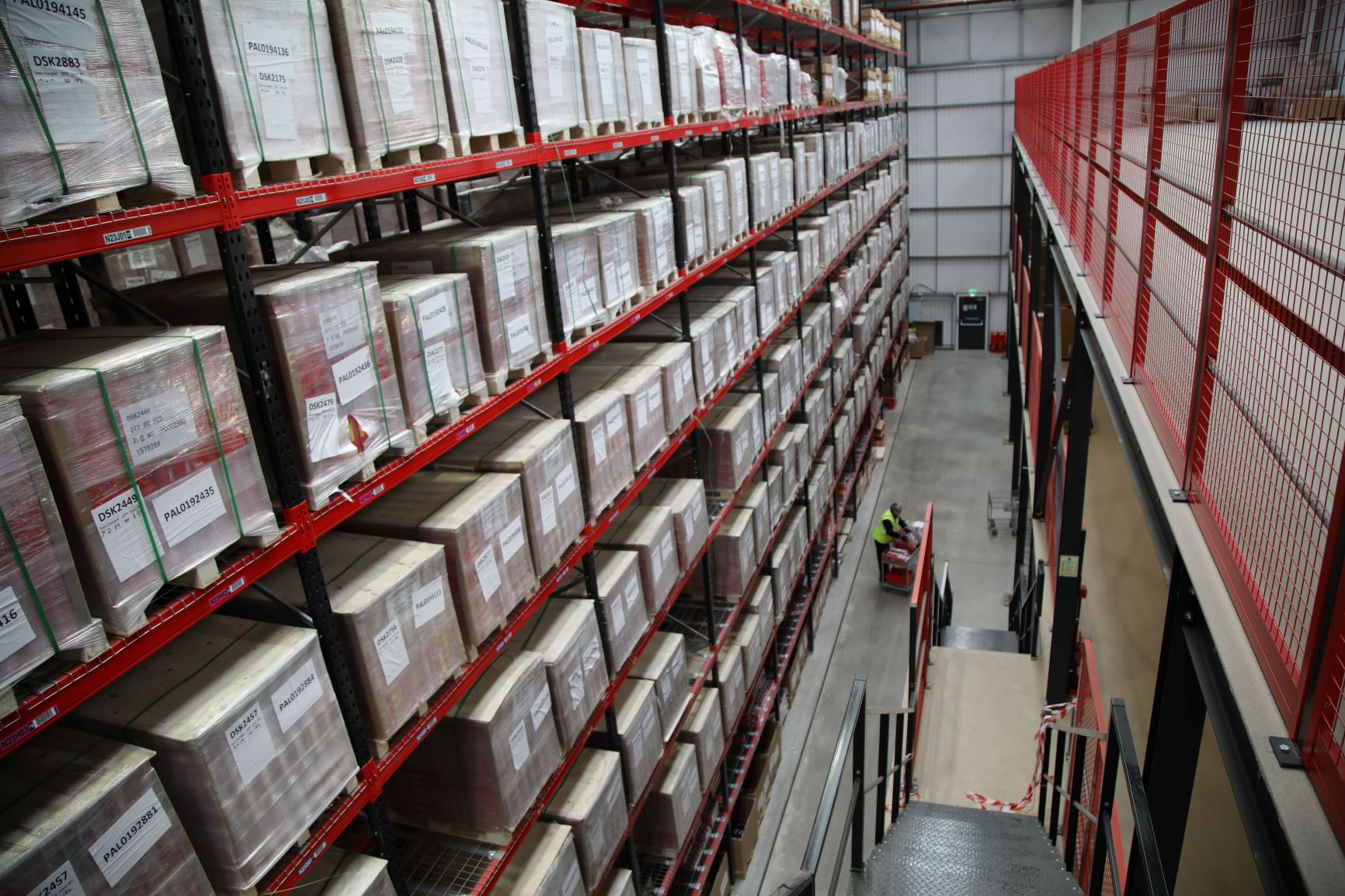

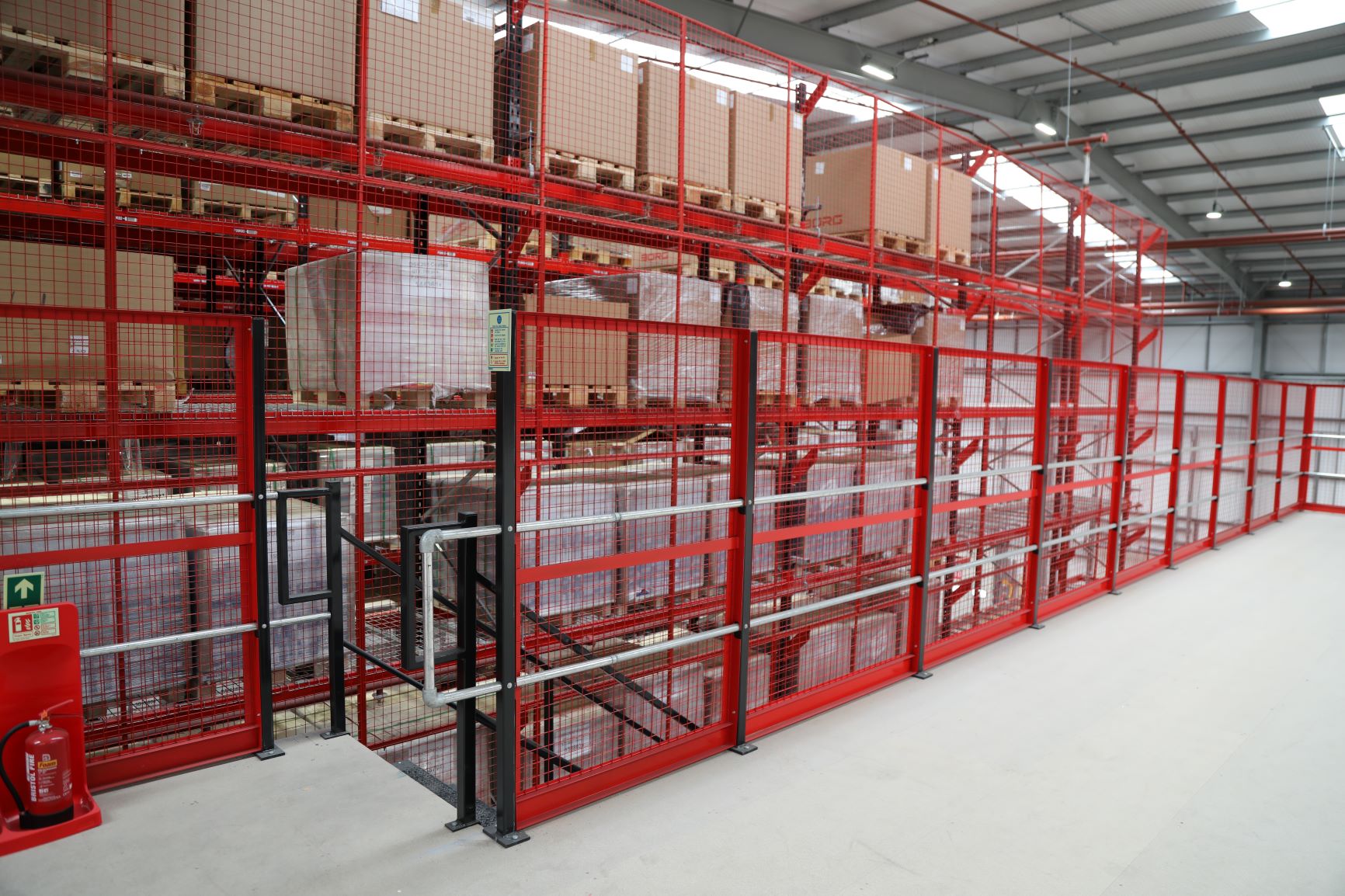

Handrail Infill
A low cost solution to provide additional protection to handrail around mezzanine floors.
product specification
| Standard Height | 1,788 mm |
|---|---|
| Standard Width | 1,448 mm |
| Mesh | 2” x 2” |
| Angle Frame | 50mm x 50mm (Sides) 43mm x 43mm (Top and Bottom) |
