Steel Partitioning

Single Skin Partitioning

An ideal solution where a high quality and cost effective partitioning system is required for separating work or storage areas.

SPECIFICATION

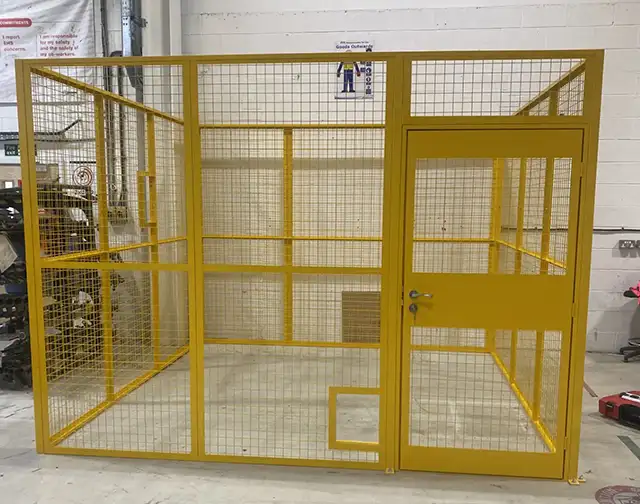

Panels are constructed from 43 x 43 x 1.2 mm (18g) cold-rolled angles and 32 x 32 x 0.7 mm (22g) cold-rolled T bars. Panels are available in solid, mesh or solid/glazed/solid elevations.

Choice of powder coated finishes.

Demountable and relocatable.

Ceiling solutions available to complement our partitioning.

STANDARD PANEL SIZES

Height	2,400, 2,700, 3,000 mm
Width	1,000 mm
Dado Height	1,200 mm
Thickness	43 mm

A range of infill and special sized panels can be supplied to achieve final dimensions.

Side hung and sliding door options available.

MULLION SIZES

50 x 50 x 2.5 mm	up to 2,700 mm high
80 x 40 x 2.5 mm	2,700 mm and above
100 x 50 x 3.0 mm	to suit installation

All Two-Way (intermediate) mullions have base plates for floor fixing. Knee braces and/or ladder mullions may be fitted for extra stability and strength

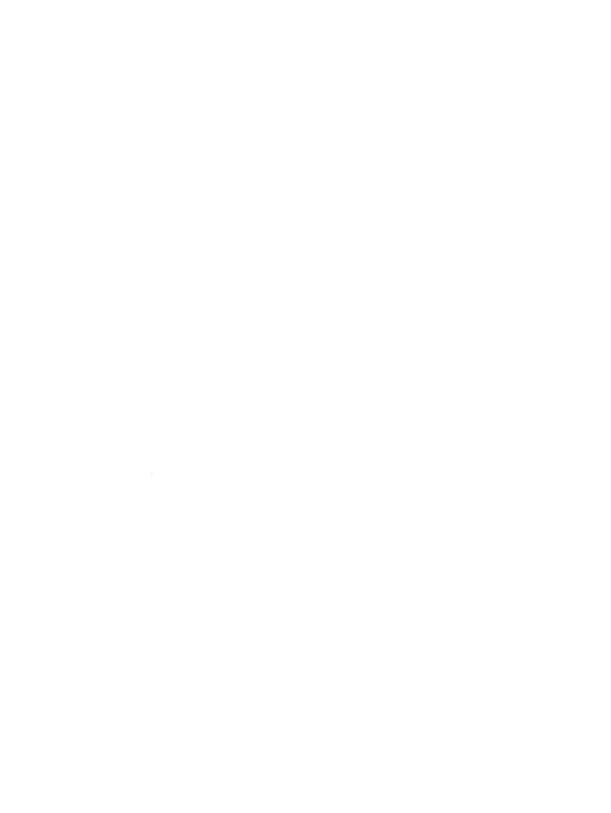

Typical single skin floorplan layout

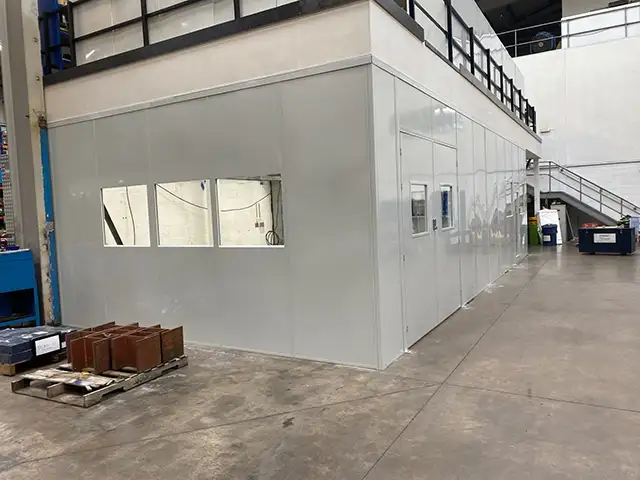

Double Skin Partitioning

An alternative higher quality partitioning system where a smooth interior finish or good sound reduction is required. Ideal for works offices, clean rooms and storage areas for chemicals and food products.

SPECIFICATION

Panels are constructed from 25.4 x 42 x 25.4 x 1.2 mm (18g) cold rolled channels panelled both sides with 0.8 mm (21g) CR4 mild steel sheet with 30 mm Rockwool mineral fibre infill and are joined together using an ‘H’ section. Panels are available in solid, half-glazed, solid/glazed/solid or borrowed light elevation.

Choice of powder coated finishes.

Demountable and relocatable.

Ceiling solutions available to complement our partitioning.

STANDARD PANEL SIZES

Height	2,400, 2,700, 3,000 mm
Width	1,000 mm
Dado Height	1,200 mm
Thickness	47 mm

A range of infill and special sized panels can be supplied to achieve final dimensions.

Side hung and sliding door options available.

MULLION SIZES

50 x 50 x 2.5 mm	up to 2,700 mm high
80 x 40 x 2.5 mm	2,700 mm and above
100 x 50 x 3.0 mm	to suit installation

All Two-Way (intermediate) mullions have base plates for floor fixing. Knee braces and/or ladder mullions may be fitted for extra stability and strength.

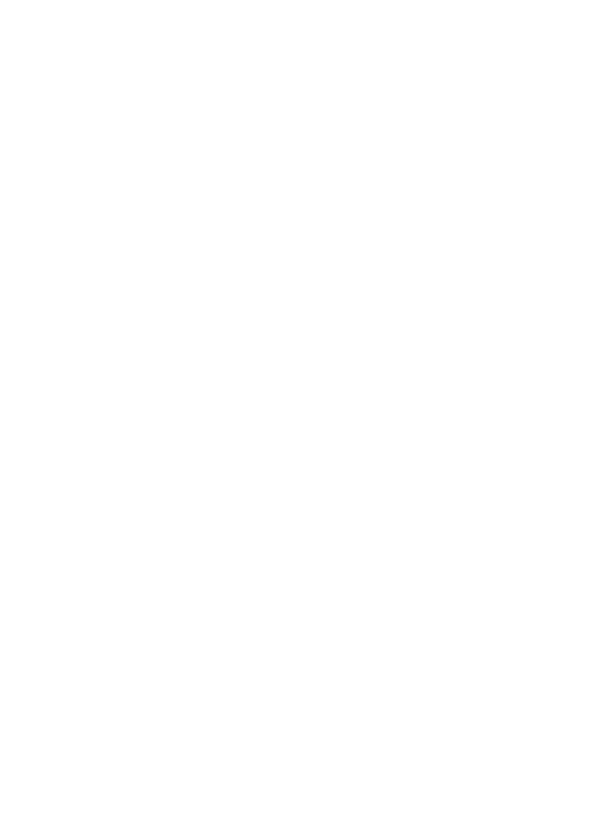

Typical double skin floorplan layout

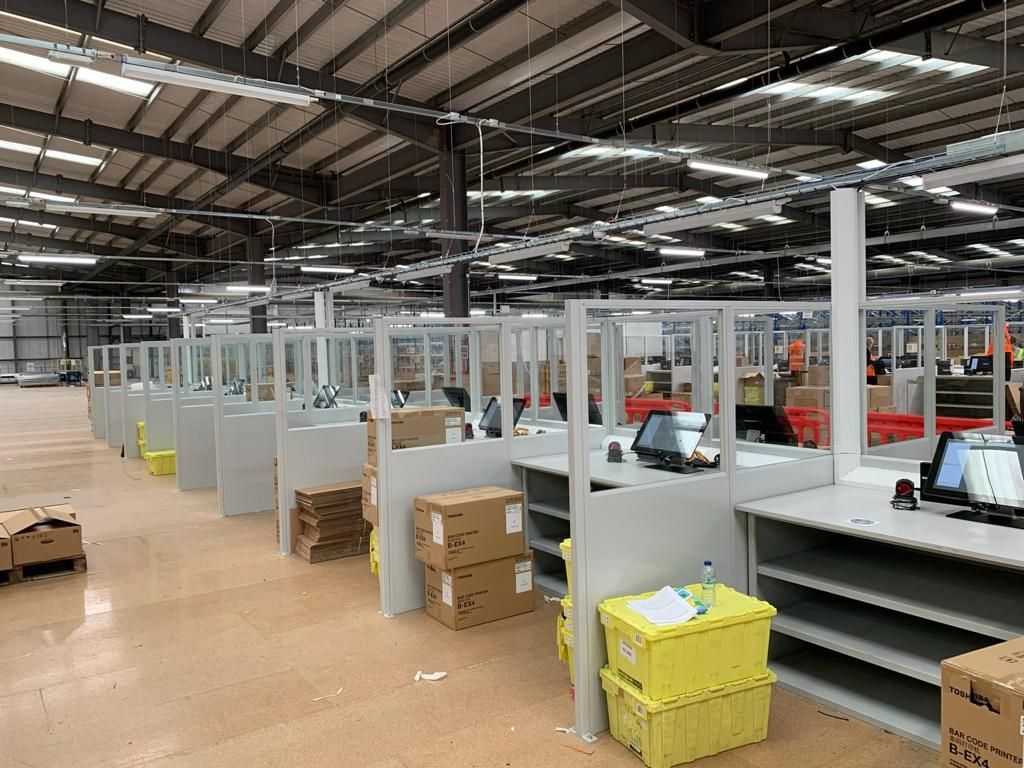

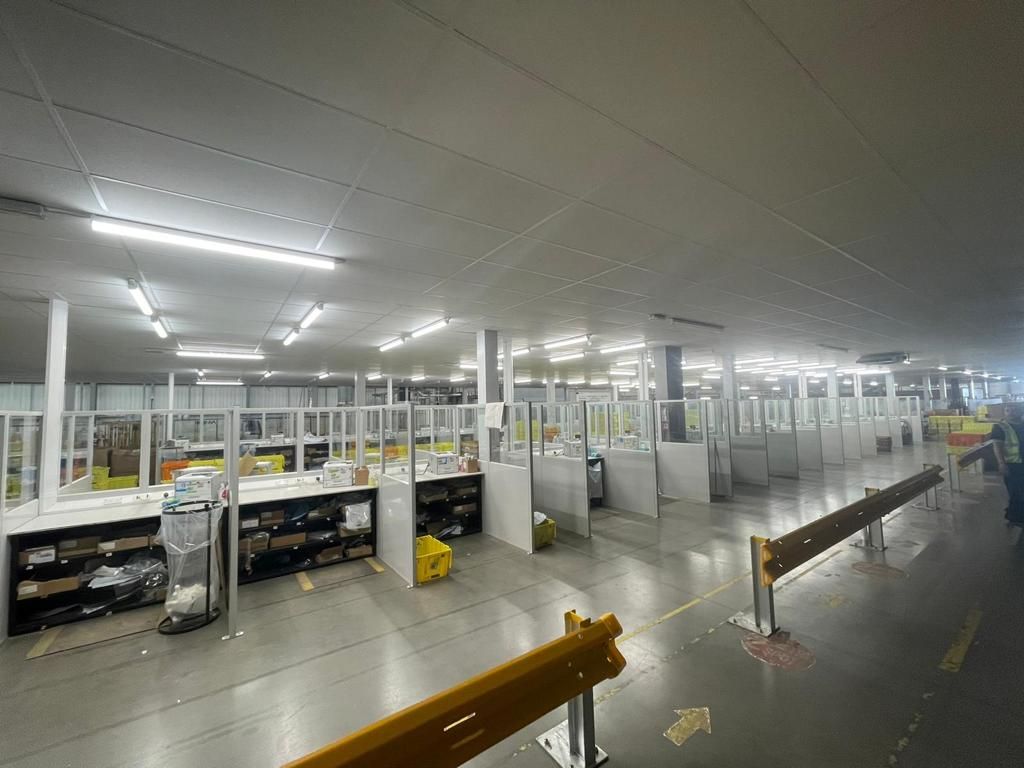

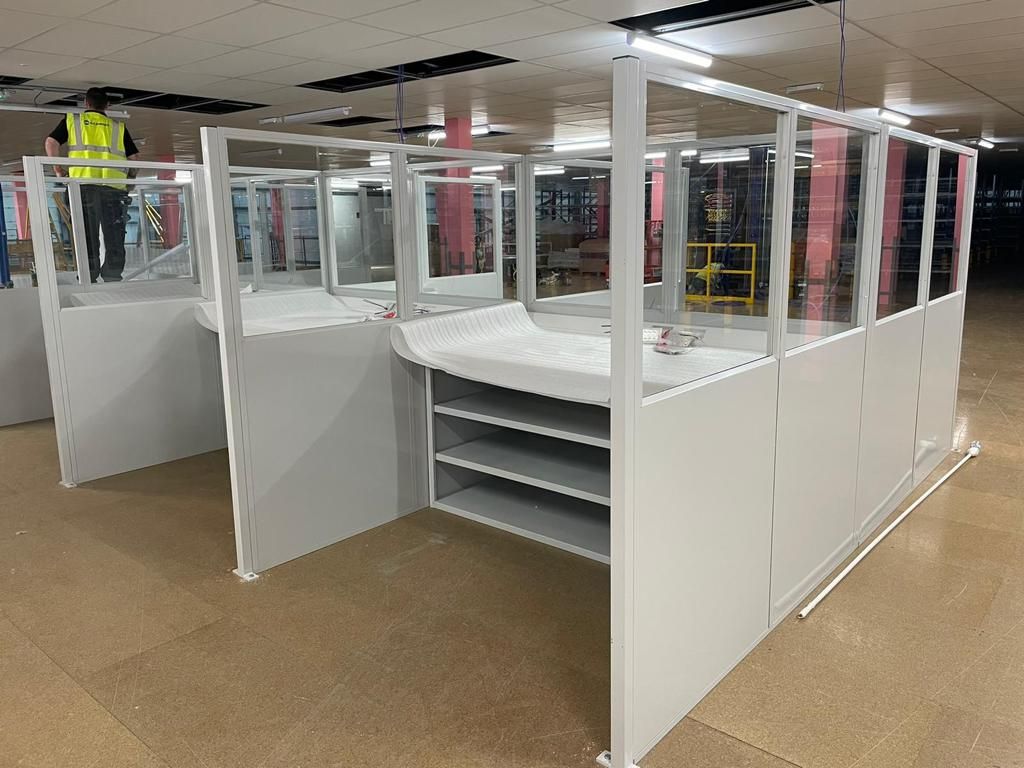

Desk Screens

A low cost and durable screen to help separate and protect employees.

The laminated glass screen enables communication between office colleagues and can easily be cleaned.

The frame is available in different colours to complement existing furniture.

product specification

Demountable and relocatable

standard panel sizes:

Height	1,800mm
Width	1,000 mm
Dado Height	900 mm
Thickness	47 mm

mullion sizes:

50 x 50 x 2.5mm
